Product Model
Milesgo MBus to USB converter connects to the MBus bus of terminal instruments such as heat meters and water meters through the MBus interface, and directly outputs USB signals on the other end. It can seamlessly interface with computer or gateways with USB interfaces, achieving fast access, data reading, and parameter debugging of terminal instruments.
The product is fully compatible with the domestic CJ188 standard and the European EN1434 standard, meeting the access needs of different regions and types of instruments, and providing efficient and stable debugging solutions for on-site engineers.Non-human damage, warranty is 2 year.
Feature & Advantages
1. Transparent hardware transparent transmission, zero signal delay, stable and reliable transmission performance;
2. Industrial grade materials, original imported chips, complete SMT processing;
3. Standard industrial Adam objects, easy and quick Installation with rails;
4. Complete overload and short circuit protection circuit, anti-surge circuit to protect your computer;
5. Indicators available for CPU, communication and overload, clear indication of data flow.
|
Hardware Parameters |
|
Product Name: MBus1005-USB |
|
MBus Connecting Wires: 5 sets of MBus+ and MBus (recommended for no more than 10 devices in total) |
|
MBus Static Voltage: 24V DC |
|
MBus Sending End Voltage: 36V DC |
|
Power Supply: USB bus power supply (5V DC), no external power required, power consumption 2.5W |
|
Communication Baud Rate: 2400bps |
|
Load Capacity: 10 Standard Loads（1.2 mA） |
|
Dimensions: 113*72*44mm |
|
Operating Temperature: -20℃ ~ +70℃(industrial grade) |
|
Storage Temperature: -30℃ ~ +75℃ |
|
Humidity: 5%~95% (no condensation) |
|
Weight: 150g |
|
Installation Method: Rail-mounted |
|
Indicator Light Description: |
|
CPU Indicator |
The CPU indicator (green)stays on for a long time. when the module is connected to power.
If the light goes off, the module is not working properly and the power supply must be disconnected. |
|
Communication Indicator |
The indicator (green) flashes when downlinking data (the computer sends data to instrument), and it goes off when data is sent; when the green indicator is on without data transmission, it indicates that the module is not working properly. The indicator (green) flashes when uplinking data (instrument sends back data to the computer), and it goes off when data is sent; when the green indicator is on without returning data, it indicates that the instrument is not working properly or line failure. |
|
Overload Indicator |
During data transmission/reception, the illumination of TX/RX indicators signifies normal communication operations. If data traffic is detected without corresponding LED activity, this may indicate a potential module malfunction. |
Product Dimensions:

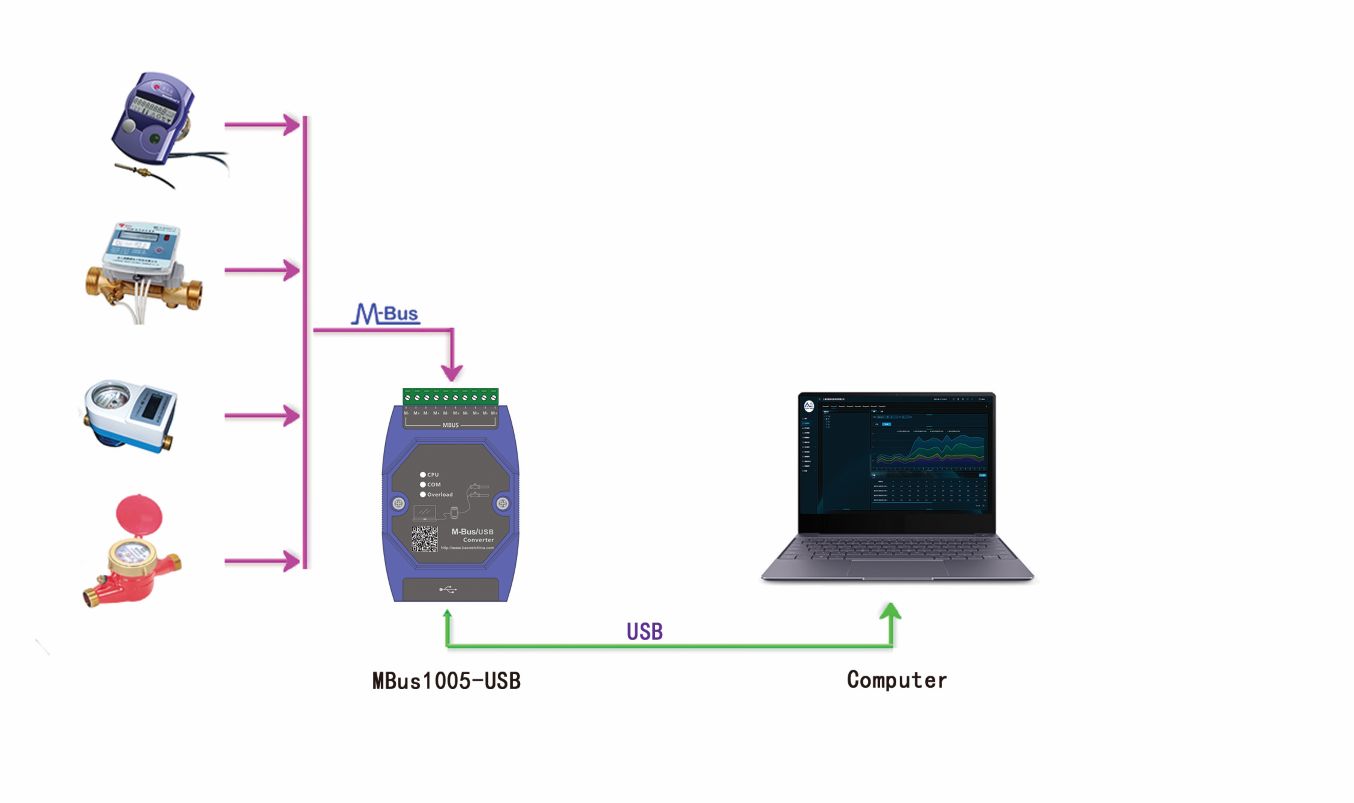

Schematic Diagram:
Wiring Diagram:

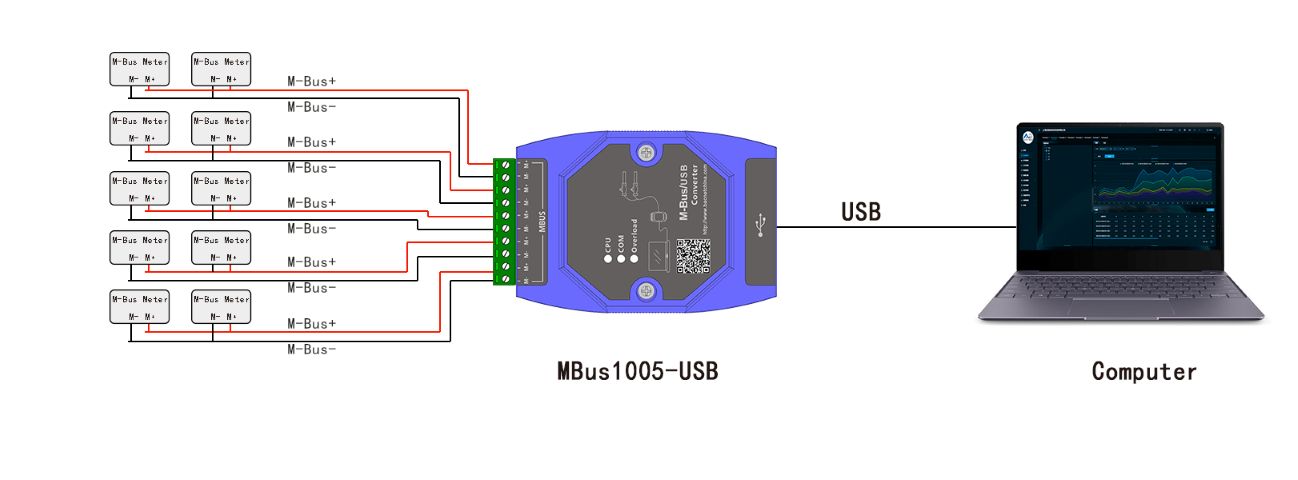

MBus1005-USB connect computer.
MBus1005-USB connect Milesgo Gateway.
|
