Product Model: BAC2004-Lite ( DIN-Rail Mount)
Function Description：
BACnet Gateway, BAC2004-Lite (featuring 2 Ethernet port and 4 RS485 serial ports, dynamically supporting 1024 points), is capable of collecting data from Modbus and BACnet IP , and forwarding it to BACnet IP, BACnet MS/TP server, and OPC UA server.
The gateway utilizes X2BACnet software for configuration, where "X" represents various acquisition protocols, "2" is a homophone for "To" indicating conversion, and "BACnet" signifies the ultimate standard BACnet IP server supported.
Users can configure projects based on the on-site device point list, forwarding them to a standard BACnet IP server. Once uploaded to the hardware gateway, BACnet client can access data from on-site devices through the gateway.
Note: The Modbus register addresses on the gateway's acquisition side start from 1 in decimal (Base1) and from 0 in hexadecimal (Base0).
Application Field：
Addressing the integration of Modbus RTU devices with building automation configuration software such as Johnson Controls' Metasys, Honeywell's EBI or Niagara, Siemens' Insight or Desigo CC, and Schneider's EBO, including various devices that support the Modbus RTU protocol like PLC, DDC, temperature controller, elevator, HVAC system, UPS, fire alarm system, smart lighting, electricity meter, water meter, and more.
Runtime environment：
OS：Win 7, Win8, Win10, Win11, Win Server 2008, Win Server 2016, and more.
Browser： Google Chrome, Microsoft Edge, Apple's Safari, Firefox, Opera, and 360 Speed Mode.
Register Type:

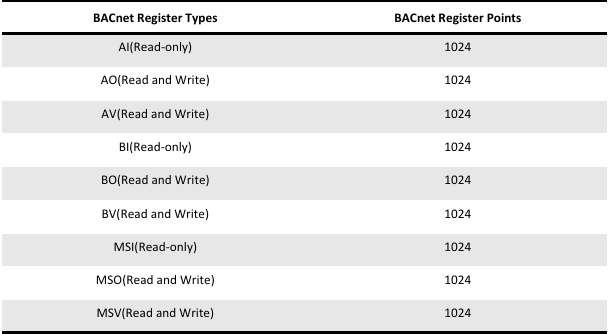

The BACnet gateway supports a BACnet IP server, which supports the following register types and maximum number of points as shown in the table.
Note that the number of gateway registers is dynamically supported, with each type of register capable of supporting up to the total number of points supported by the gateway.
Software Features：
- BTL Certifacate and BACnet International Corporate Gold Member;
- Support convert Modbus RTU/TCP, BACnet IP to BACnet IP/MSTP server, OPC UA;
- Support multi-device forwarding;
- BACnet Gateway compatible with BACnet routing function;
- Support COV subscription and BBMD cross-subnet access;
- Support BACnet Alarm and Event;
- Support Chinese name and description;
- Support total 11 object types:AI, AO, AV, BI, BO, BV, MSI, MSO, MSV, Schedule, Trendlog;
- Support linear conversion, bit extraction, and high-low byte swapping;
- Support JS script and trigger for logical control;
- Support internal variables and device online/offline status checking;
- Support Web browsing for real-time data viewing;
- X2BACnet software is easy configuration, with 1024 points configurable within 20 minutes;

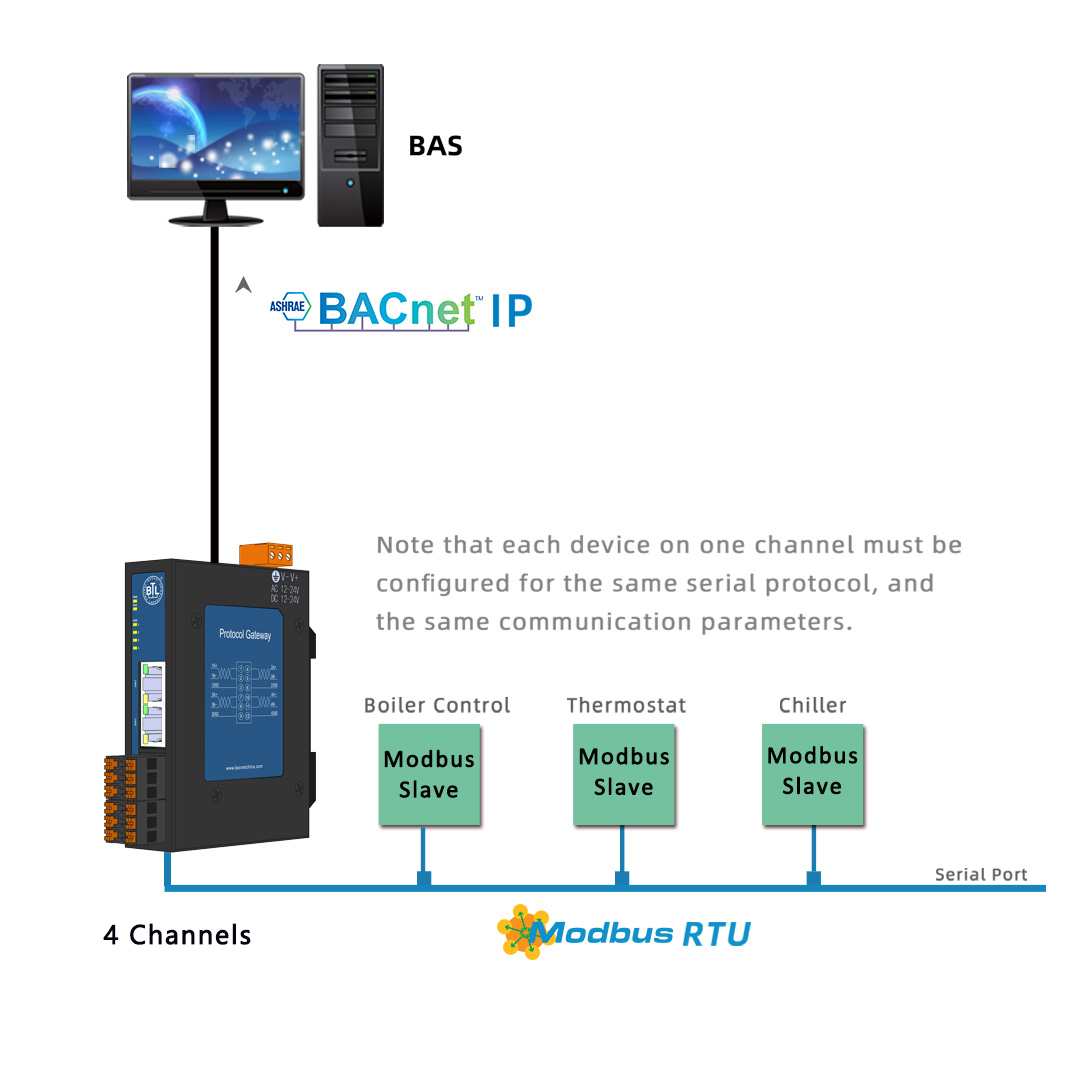

Application Principle Diagram
Product Size
