BAC1002-Lite(Economical)

          Product Model: BAC1002-Lite(DIN-Rail Mount)

          Function Description:

          BAC1002-Lite is a economical hardware gateway with 1ethernet and 2serial ports for Modbus device only. All devices supported standard Modbus , or some non-standard Modbus protocol can be converted by BACnet hardware Gateway into standard BACnetIP, enable users can read&write Points in Modbus device by BACnet system.

          Application Field:

          BACnet Gateway can convert standard Modbus or some non-standard Modbus into BACnet IP. BACnet Gateway have solved the problem that some large BA Company can’t connect any uncommon devices. BACnet system can control uncommon devices by BACnet gateway.

          BA Controls:

          Honeywell(EBI、Niagara), Siemens(Insight), Johnson Controls( Metasys), Schneider Electric(TAC)、Delta(ORCAview)etc.

          Uncommon Devices:

          PLC、 Air conditioner、 Elevator、 fire control、light control、smart meter、water meter etc.



          Runtime environment:

          OS:Windows XP/Win 7/Win8/Win10/Win Server 2003/Win Server2008/Win Vista etc.

          Browser: IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.



          Register Type:

          The BACnet gateway  support the register type and the maximum number of points as follows.
          Note: the number of gateway register points is dynamically supported, and the total number of points should not exceed 512 points (including virtual points).



           Software Features:

              -Green software and Free Installation;
              -Convert standard Modbus or some non-standard Modbus into BACnet IP server;

-browser, set up and moniter by WEB;
              -Line convert、fetch bit 、Highbyte & Lobyte convert;
              -Internal variable can check device online & offline status;
              -9 Register types (AI、AO、AV、BI、BO、BV、MI、MO、MV);
              -Friendly software configuration tool,complete 256 points in 10m;
              -new Protocol can be completed in 2 weeks;





          Application Principle Diagram

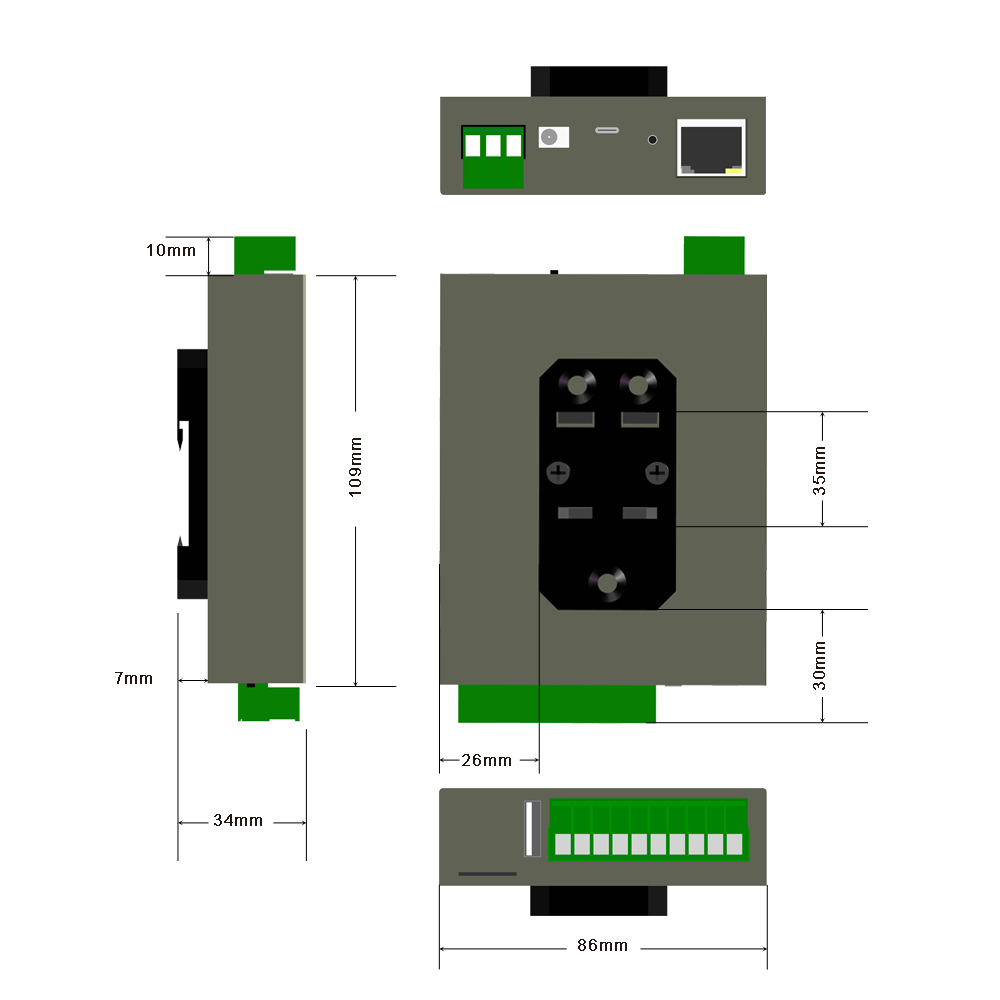

          Product Size



 Download file list
1002-LITE-Instruction for installation.pdf
X2BACnet-Lite-En.pdf(User Manual)
BTL_Cert_30342_ShanghaiSu_SunFullBAC.pdf
Sunfull BACnet Gateway_PICS.pdf

If you need to develop a non-standard protocol , please contact us.

If it is best to express the device to our company, the development cycle is usually 2 weeks.
