BAC2004-ARM(1024 Points)

          Product Model: BAC2004-ARM(DIN-Rail Mount)

          Function Description:

          BAC2004-ARM is a hardware Gateway with 2 ethernet and 4 serial ports.  Matching software is X2BACnet . X means all kinds of protocols from different manufacturer. These protocols(X) can be converted by BACnet hardware Gateway into standard BACnetIP. Configured project files by X2BACnet  are uploaded to hardware gateway, users can read/write point informations from different manufacturer by BACnet system.


          Application Field:

          BACnet Gateway can convert all kinds of protocols into BACnet IP. BACnet Gateway have solved the problem that some large BA Company can’t connect any uncommon devices. So BACnet system can control uncommon devices by BACnet gateway.

          BA Controls:

          Honeywell(EBI、Niagara), Siemens(Insight), Johnson Controls( Metasys), Schneider Electric(TAC)、Delta(ORCAview)etc.

          Uncommon Devices:

          PLC、 Air conditioner、 Elevator、 fire control、light control、smart meter、water meter etc.


          Runtime environment:

          OS:Windows XP/Win 7/Win8/Win10/Win Server 2003/Win Server2008/Win Vista etc.

          Browser: IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.


          Register Type:

          The BACnet gateway  support the register type and the maximum number of points as follows.
          Note: the number of gateway register points is dynamically supported, and the total number of points should not exceed 1024 points (including virtual points).


           Software Features:

              -Green software and Free Installation;
              -Support 200+ protocols can be converted into BACnet IP server;
              -browser, set up and moniter by WEB;
              -Line convert、fetch bit 、Highbyte & Lobyte convert;
              -Internal variable can check device online & offline status;
              -9 Register types (AI、AO、AV、BI、BO、BV、MI、MO、MV);
              -Friendly software configuration tool,complete 1024 points in 20m;
              -new Protocol can be completed in 2 weeks;

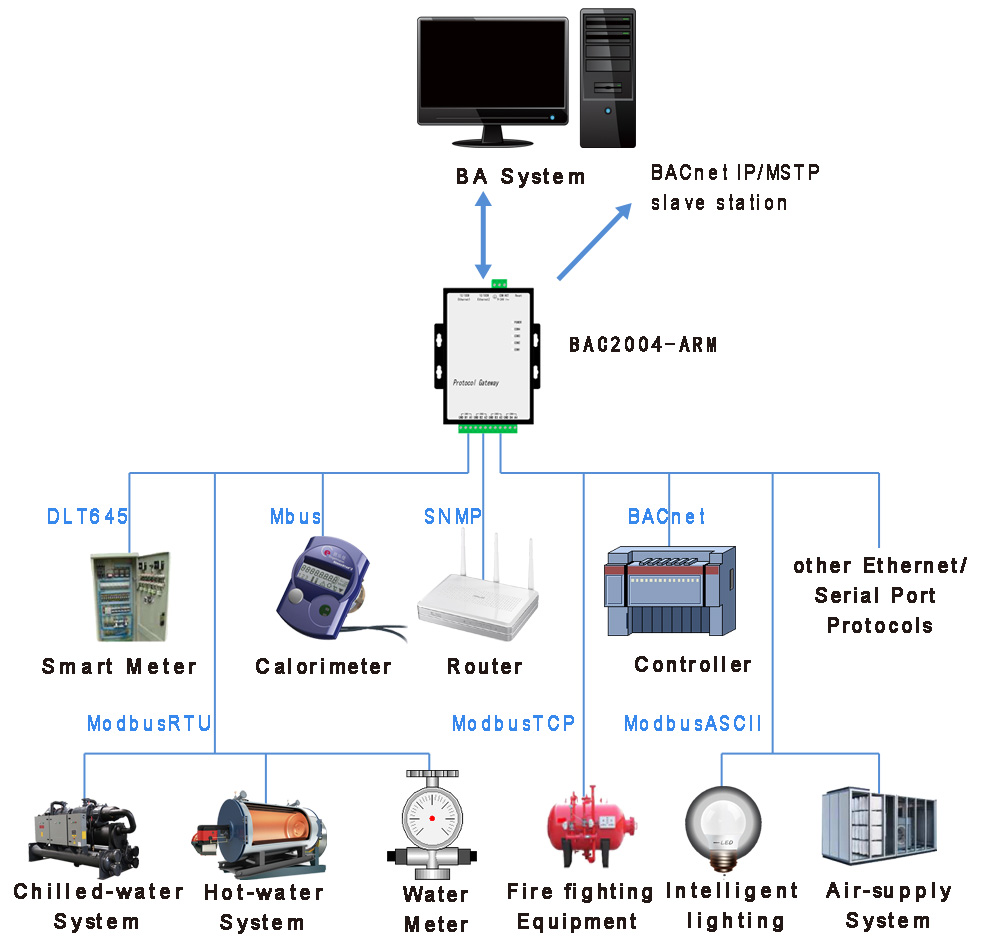

          Application Principle Diagram


          Product Size(DIN-Rail Mount)


 Download file list
Available Protocols List.pdf
2004-ARM-Instruction for installation.pdf
X2BACnet-En.pdf(User Manual)
Sunfull BACnet Gateway_PICS.pdf

If you need to develop a non-standard protocol , please contact us.

If it is best to express the device to our company, the development cycle is usually 2 weeks.
